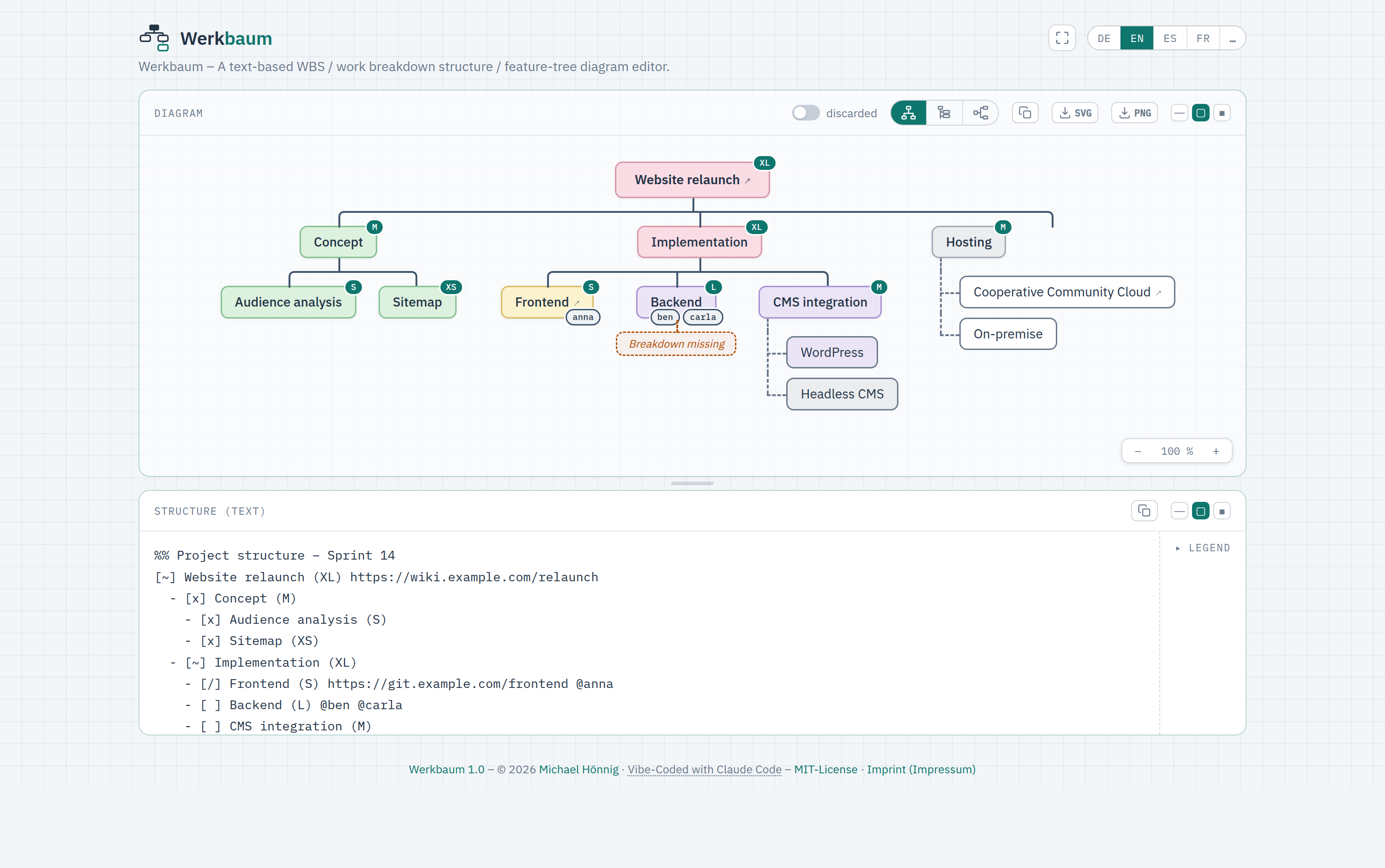

▶ Try it live: https://werkbaum.javagil.de (stable) · https://mhoennig.github.io/werkbaum/ (latest build 🚧)

A textual, Markdown-like notation for work breakdown structures with and/or decomposition — plus a live editor that renders it as a diagram.

[~] Werkbaum (XL) https://wiki.example.de/relaunch
  - [~] Document store
    | [x] Text file with copy+paste in the frontend (S)
        - [x] Parser
        - [x] Text input field in the frontend
    | [ ] Backend
  - [~] Display/rendering (XL)
    - [/] H (S) @anna
    - [ ] CMS integration (M)
      | [ ] WordPress
      | [?] Headless CMS

- = mandatory sub-package (all of, side by side in the diagram) · | = alternative (any of, stacked) · […] = status · (M) = T-shirt effort · @name = responsibility · %% = comment.

Usage

Open the hosted editor — edit text on the left, the diagram is built live on the right. Toggles: transposed (narrow) layout, show discarded elements.

Jumping between diagram and text

Diagram and editor are linked in both directions:

• Alt+click a node (keyboard: Alt+Enter, touch: long press) selects its line in the text editor — collapsed editor panel opens first.
• Moving the cursor in the text highlights the matching node in the diagram.

A plain click keeps its old meaning: a node carrying a URL still opens it.

Loading a diagram from a URL

The editor can pull its notation text from an external text file via the sourceUrl query parameter — handy for sharing a plan or keeping the source in Git or a wiki:

https://werkbaum.javagil.de/?sourceUrl=https://git.javagil.de/mi/werkbaum/raw/branch/main/docs/examples/example-plan-0.werkbaum

Ready-made examples in docs/examples/ — open them one after another, each becomes its own document, so afterwards you can switch between all of them in the editor title bar:

Example	Shows
▶ 0 · Online shop relaunch	a software project with all eight states
▶ 1 · New kitchen	a non-software plan, lots of alternatives — good for the cheapest-path toggle
▶ 2 · Community conference	a wide plan with many people; compare horizontal vs. compact
▶ 3 · Three workstreams	several roots = several trees side by side
▶ Werkbaum itself	what exists today and where it could go

The loaded text becomes its own document whose name is the URL, so your own documents stay untouched; the same link updates that one document instead of piling up copies. The URL is the source of truth — it is re-fetched on every load, so local edits to it do not survive a reload.

Notation files use the extension .werkbaum (UTF-8; see docs/SPEC.md §12 and D24) — a convention, not a contract: sourceUrl reads any text file over http(s) regardless of extension or content type.

Caveat — CORS: the browser only fetches a foreign host if it sends Access-Control-Allow-Origin. raw.githubusercontent.com, GitLab raw links and git.javagil.de do (D96); an arbitrary web server often does not. If loading fails the previous content stays and a warning explains why. Only http/https are allowed.

Working on one plan together (?live=)

If the plan lives on a Werkbaum backend, everyone edits it in the editor itself and sees the others' changes without reloading:

https://werkbaum.javagil.de/?live=https://werkbaum.javagil.de/api/v1/documents/<uuid>

To create such a document, press the Share button in the text editor's title bar: it uploads the active plan, switches to it, and puts the link in the address bar and on your clipboard. Share that link — the address is the invitation, and knowing it is what grants access.

The text area stays writable. After 0.6 s of quiet the editor sends the change as a line diff; an open request holds the other direction ready and plays foreign changes in. The caret travels with them — if someone inserts lines above you, it stays where it was in the text.

The document's title is its name (everyone sees the same one), the full address sits in the tooltip.

The address bar follows the document you are on. Switch to a local plan and ?live= goes away; switch to another server document and its address takes its place — so a reload brings back what you were looking at. Picking a server document from the menu also puts you back into the shared session.

When two changes really overlap — the same lines — a bar at the top asks whose version should win: take theirs or keep mine. Everything else the server merges without asking. Nothing is lost either way: the discarded state stays in the earlier states, and every version is in the server's history.

A shared pointer: write !!! on a line and that node is highlighted and scrolled into view — for everyone looking at the document, which is something a cursor cannot do. Recognised only as a standalone token, so Careful!!! stays an ordinary label. It stays in the text until someone deletes it.

A git history for a shared plan: tools/pull-doc <document-url> <file> fetches the document (a ?live= link works too) and writes it to the file; with --git-commit it also commits it into the file's git worktree — date, title and version in the message, and no commit when nothing changed. Run it from cron and the plan archives itself; --open opens the file in IntelliJ IDEA afterwards. See docs/DECISIONS.md D88.

Several documents, unattended: tools/mirror-docs [--push] <worktree> <list> runs every line of the list (<uuid-or-url> <path>) through pull-doc --git-commit and pushes once at the end; a UUID needs the backend base in --api or WERKBAUM_API. As a systemd timer on the backend host it mirrors the shared plans into a branch every 15 minutes — see D88, addendum 3.

Setting up the backend: see backend/README.md and docs/DECISIONS.md D76.

Werkbaum used to borrow an Etherpad for this (?etherpad=). That is removed — the backend does the same job better and in the editor itself. An old ?etherpad= link now shows a note pointing here rather than silently doing nothing; see docs/DECISIONS.md D78.

Where the code lives

The repository is at https://git.javagil.de/mi/werkbaum (Gitea) — that is origin, and that is where branches belong:

git clone mih09-git@git.javagil.de:mi/werkbaum.git      # or https://git.javagil.de/mi/werkbaum.git

GitHub stays a clone. main is mirrored there by hand (scripts/push-github.sh), because the GitHub Pages instance hangs off it — the 🚧 latest build linked at the top. The example links above used to be a second reason and are not any more: git.javagil.de now serves raw files with an Access-Control-Allow-Origin header, so they point at Gitea (docs/DECISIONS.md D96, revising D95).

Running it locally

The editor source now lives as ES modules under frontend/src/, bundled by Vite (see docs/DECISIONS.md D19). Because browsers block ES-module imports over file://, opening frontend/index.html directly no longer works — use one of:

cd frontend
npm install          # once
npm run dev          # dev server at http://localhost:8137
npm test             # Vitest unit tests
npm run build        # -> frontend/dist/index.html (single self-contained file)

The built dist/index.html inlines all JS, CSS and the favicon, so that file does open standalone via file:// and is what gets deployed.

Build hint & your own production install

Non-production builds carry a small hint next to the title (symbol + tooltip) so it's clear this is not the stable instance:

• Dev server (npm run dev) → 🔧 "Preview – local development build"
• Default build (npm run build, incl. the GitHub Pages deploy) → 🚧 "Latest build – may still be buggy"

For your own production install the hint is switched off:

cd frontend
npm ci                # or: npm install
npm run build:prod    # -> frontend/dist/index.html WITHOUT the hint

build:prod runs Vite in mode prod; frontend/.env.prod sets VITE_BUILD_BADGE=none, so the badge code is tree-shaken away entirely (it isn't even present in the output source). Drop the resulting dist/index.html onto your web space/server (standalone, file://-capable). Details: app.js (mountBuildBadge), docs/DECISIONS.md D16.

Two things otherwise handled only by the Pages workflow, to fix up yourself when self-hosting: the footer MIT-License link is relative to ../LICENSE (place that file one level above index.html, or adjust the link), and the version number stays the source placeholder 1.0 (the workflow otherwise replaces it from VERSION + commit count).

Easier: scripts/deploy-prod.sh. The script runs exactly that prod build and both fix-ups (drop LICENSE alongside + straighten the link, footer version + commit link just like the Pages workflow) and mirrors the result to a server via rsync/SSH:

scripts/deploy-prod.sh mih00@mih00.hostsharing.net:~/doms/werkbaum.javagil.de/htdocs-ssl

The target is either this argument or — with no argument — the DEPLOY_TARGET variable from the git-ignored file .env (template: .env.example, copy it once and fill in the path). An argument takes precedence.

Without -y it first shows a --dry-run preview and asks for confirmation. rsync --delete ensures nothing old is left at the target — so the target directory is treated as exclusive to Werkbaum (an in-flight Let's Encrypt challenge under .well-known/ is spared via --filter=protect, and web-friendly 755/644 permissions are enforced). (Hostsharing: a directly-served domain is served from …/htdocs-ssl/; as a subdomain under another domain the web directory would be …/subs-ssl/<name>/.)

Project documents

• frontend/ — editor · backend/ — Kotlin/Spring (scaffold to follow, see backend/README.md)
• docs/SPEC.md — normative language definition
• docs/DECISIONS.md — design decisions with rationale
• docs/ROADMAP.md — Mermaid plugin, Taiga integration, Tenzu
• docs/TASKS.md — open tasks (checkboxes)
• docs/rfc/ — proposals that span several parts of the repo, weighed before they are built (001: an MCP server for AI agents; 002: the installed app and a browser tab side by side)
• docs/brand/BRAND.md — logo, wordmark, usage rules
• docs/design/ — design derivation of the brand
• CLAUDE.md — project context for Claude Code

Note: The detailed project documentation under docs/ is maintained in German, the project's source language (see CLAUDE.md). This README is available in English and German.

Deployment

The editor is published as a static page on GitHub Pages via GitHub Actions (workflow: .github/workflows/pages.yml). Triggered on every push to main of the clone — that is, after scripts/push-github.sh has mirrored it (D95) — and manually (workflow_dispatch).

The workflow sets up Node, runs npm ci, npm test (Vitest) and npm run build (Vite), then publishes the bundled frontend/dist/index.html as index.html at the root URL, plus LICENSE for the MIT link in the footer. The favicon is already inlined into the build, so nothing else needs copying; only the runtime ../LICENSE link is straightened on the copy. A failing test blocks the deploy. backend/ and the remaining docs/ are not published.

While assembling the site, the workflow also stamps the version into the footer: major.minor comes from the VERSION file (bumped by an explicit "bump commit"), and the micro part is the number of commits since that last bump — so it grows with every commit and resets to 0 right after a bump (Werkbaum 1.0.0, 1.0.1, … then bump VERSION to 1.1 → 1.1.0). Nothing is written back to the repo. In the footer the name Werkbaum links to the repository on Gitea, while the version number links to that exact commit there (…/commit/<sha>) — the clone carries the same SHAs. Opened locally, the editor shows the source placeholder (Werkbaum 1.0).

One-time setup: In the repo settings under Pages, select Source = "GitHub Actions". The repo must be public for this (GitHub Pages via Actions is only available for private repos on a paid plan).

One command for the server: remote

Everything that happens on the server is reachable as target and action:

remote backend deploy            # build, upload, unit, restart, then probe
remote backend log               # follow backend.log
remote backend status            # systemctl --user status
remote backend info              # which build is running, through the proxy
remote backend backup            # stop, fetch the database, start again
remote backend reset-password    # asks, hashes it on the server, verifies
remote frontend deploy           # promote, build, assemble, mirror
remote frontend preview          # what would change — writes nothing
remote frontend info             # which version is out there
remote ssh                       # a shell on the server

remote --help lists them all. With direnv the repo's .envrc puts tools/ on PATH (once per checkout: direnv allow), so the command needs no path; otherwise call tools/remote.

The scripts under scripts/ remain the implementation and stay usable on their own — remote is the front door and brings along only what had no script before: the systemd verbs, the log, the state queries and the backup.

Stable instance

scripts/deploy-prod.sh mirrors a badge-free production build to a server over SSH (target in .env, template .env.example). Unlike Pages this is a deliberate step, so it is also the moment a feature actually goes live.

The script therefore starts by running scripts/promote-shipped.sh, which turns [x] (done) into [^] (in production) in docs/examples/werkbaum.werkbaum — the shipped plan describing Werkbaum itself — and records that as its own commit. The convention is: mark a finished feature [x] when it is merged and let the deploy promote it. That keeps the plan honest on both instances and keeps the "what's new" highlighting meaningful. Skip it with --no-promote; see docs/DECISIONS.md D30.

The commit is not pushed automatically — run git push afterwards, or the footer version link points at a commit GitHub does not know yet.

Backend on the stable instance

The backend is a separate deploy, because it is a service rather than files:

remote backend install-jdk      # once: a JDK 21 into the server's home
remote backend deploy           # build, upload, systemd user unit, restart
remote backend reset-password   # asks for the master password, hashes it there
remote frontend deploy          # the editor — also writes the /api/ proxy rule

(The same four as scripts/install-jdk.sh, scripts/deploy-backend.sh, scripts/reset-password.sh and scripts/deploy-prod.sh, if you'd rather call them directly.)

GET /api/v1/info answers with name, version and build time — that is the liveness check, for the deploy and for monitoring. Expecting a 404 from a document that does not exist would be a poor assurance: a misconfigured proxy returns one too.

Configuration lives in the git-ignored .env (template .env.example): BACKEND_SSH, and optionally BACKEND_DIR, BACKEND_JDK_DIR, BACKEND_PORT, BACKEND_XMX.

• A JDK of our own, because the measured target has only Java 17 while the build asks for 21. install-jdk.sh fetches it from Adoptium and verifies the checksum from their API before unpacking.
• A systemd user unit (scripts/werkbaum-backend.service, a template with placeholders). It survives the session because Linger=yes is set on that host; paths are written as %h/…, since systemd expands no shell variables there.
• The service listens on 127.0.0.1 only. The way in is a RewriteRule … [P] in .htaccess — measured to be permitted on this host, and measured to hold a request open for 30 s, which is what the change feed needs. BACKEND_PORT is the single number Apache and the service must agree on; both scripts read it from the same place.
• The master password never leaves the server. It goes into <BACKEND_DIR>/env (mode 600), which the deploy creates empty on the first run. Until a hash is in it, the document list stays locked — deliberately. scripts/reset-password.sh asks for it, sends it to the server over stdin (never as an argument — those show up in the process list) and verifies afterwards that hash and password match. Never put a password on a command line: it lands in the shell history, and the shell mangles it on the way — ge$heim becomes ge. What gets hashed is then not what you type later, and the server answers 401 while everything looks right.
• Memory is the scarce resource on that host, not CPU. The JVM flags are measured, not guessed: -Xmx192m -Xms48m plus heap free ratios lands at ~174 MB RSS, where the defaults take 291 MB. See docs/DECISIONS.md D77 for the table.

License

MIT — see LICENSE. © 2026 Michael Hönnig. The bundled IBM Plex fonts are under the SIL Open Font License 1.1 (see LICENSE and frontend/src/fonts/OFL.txt).
