Werkbaum
English · Deutsch
A textual, Markdown-like notation for work breakdown structures with and/or decomposition — plus a live editor that renders it as a diagram.
[~] Werkbaum (XL) https://wiki.example.de/relaunch
- [~] Document store
| [x] Text file with copy+paste in the frontend (S)
- [x] Parser
- [x] Text input field in the frontend
| [ ] Backend
- [~] Display/rendering (XL)
- [/] H (S) @anna
- [ ] CMS integration (M)
| [ ] WordPress
| [?] Headless CMS
- = mandatory sub-package (all of, side by side in the diagram) ·
| = alternative (any of, stacked) · […] = status ·
(M) = T-shirt effort · @name = responsibility · %% = comment.
Usage

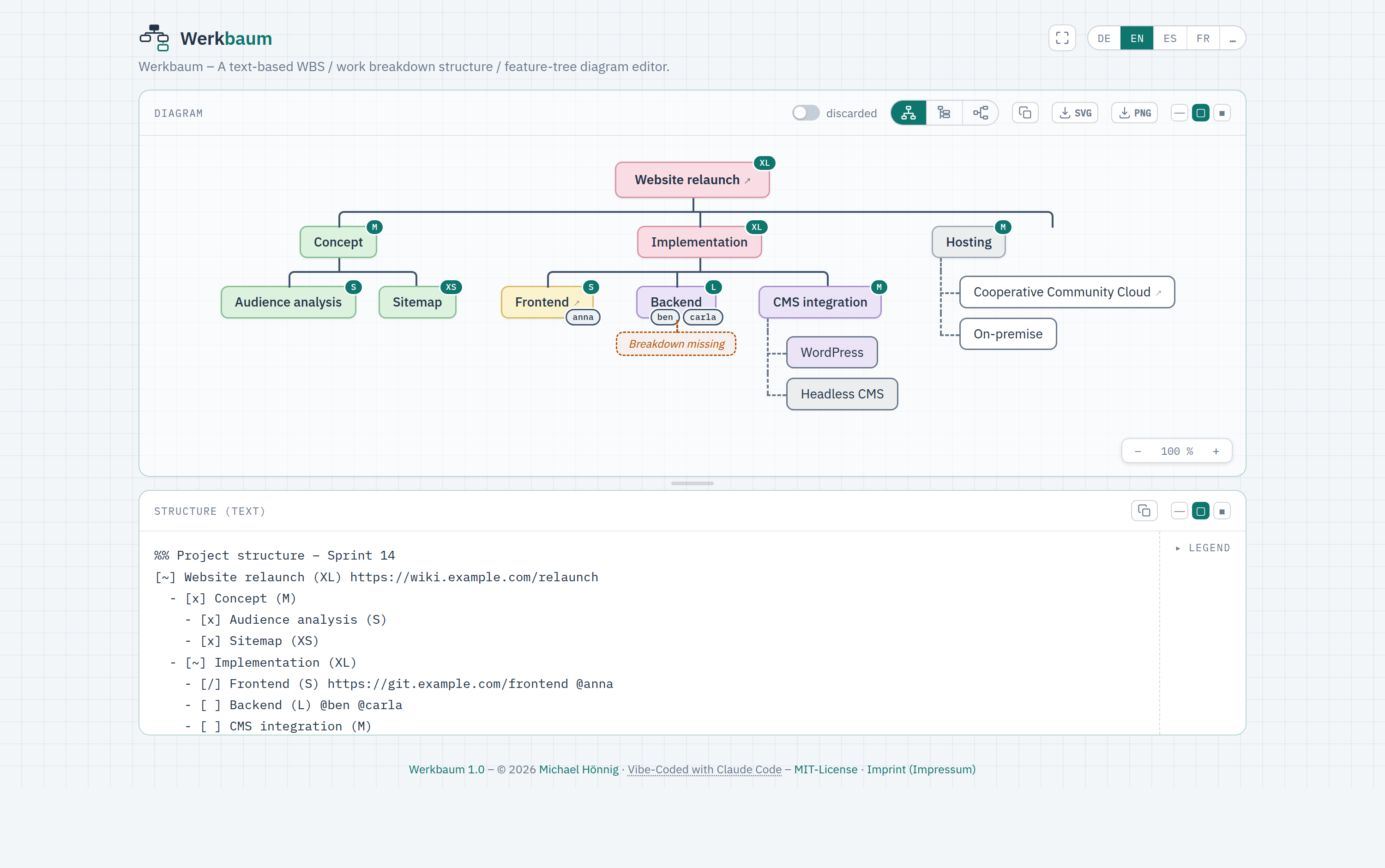

Open frontend/index.html in the browser — edit text on the left, the
diagram is built live on the right. Toggles: transposed (narrow) layout,
show discarded elements.
Project documents
frontend/— editor ·backend/— Kotlin/Spring (scaffold to follow, see backend/README.md)docs/SPEC.md— normative language definitiondocs/DECISIONS.md— design decisions with rationaledocs/ROADMAP.md— Mermaid plugin, Taiga integration, Tenzudocs/TASKS.md— open tasks (checkboxes)docs/brand/BRAND.md— logo, wordmark, usage rulesdocs/design/— design derivation of the brandCLAUDE.md— project context for Claude Code
Note: The detailed project documentation under
docs/is maintained in German, the project's source language (seeCLAUDE.md). This README is available in English and German.
Deployment
The editor is published as a static page on GitHub Pages via GitHub
Actions (workflow: .github/workflows/pages.yml). Triggered on every push to
main and manually (workflow_dispatch).
The workflow assembles a site folder: frontend/index.html is placed as
index.html at the root URL, along with the files the editor references
(docs/brand/ for the favicon, LICENSE for the MIT link in the footer). The
../ paths in the editor source are straightened only on the copy — the source
file stays unchanged. backend/ and the remaining docs/ are not published.
While assembling the site, the workflow also stamps the version into the footer:
major.minor comes from the VERSION file (bumped by an explicit "bump
commit"), and the micro part is the number of commits since that last bump —
so it grows with every commit and resets to 0 right after a bump
(Werkbaum 1.0.0, 1.0.1, … then bump VERSION to 1.1 → 1.1.0). Nothing is
written back to the repo. Opened locally, the editor shows the source
placeholder (Werkbaum 1.0).
One-time setup: In the repo settings under Pages, select Source = "GitHub Actions". The repo must be public for this (GitHub Pages via Actions is only available for private repos on a paid plan).
License
MIT — see LICENSE. © 2026 Michael Hönnig.
