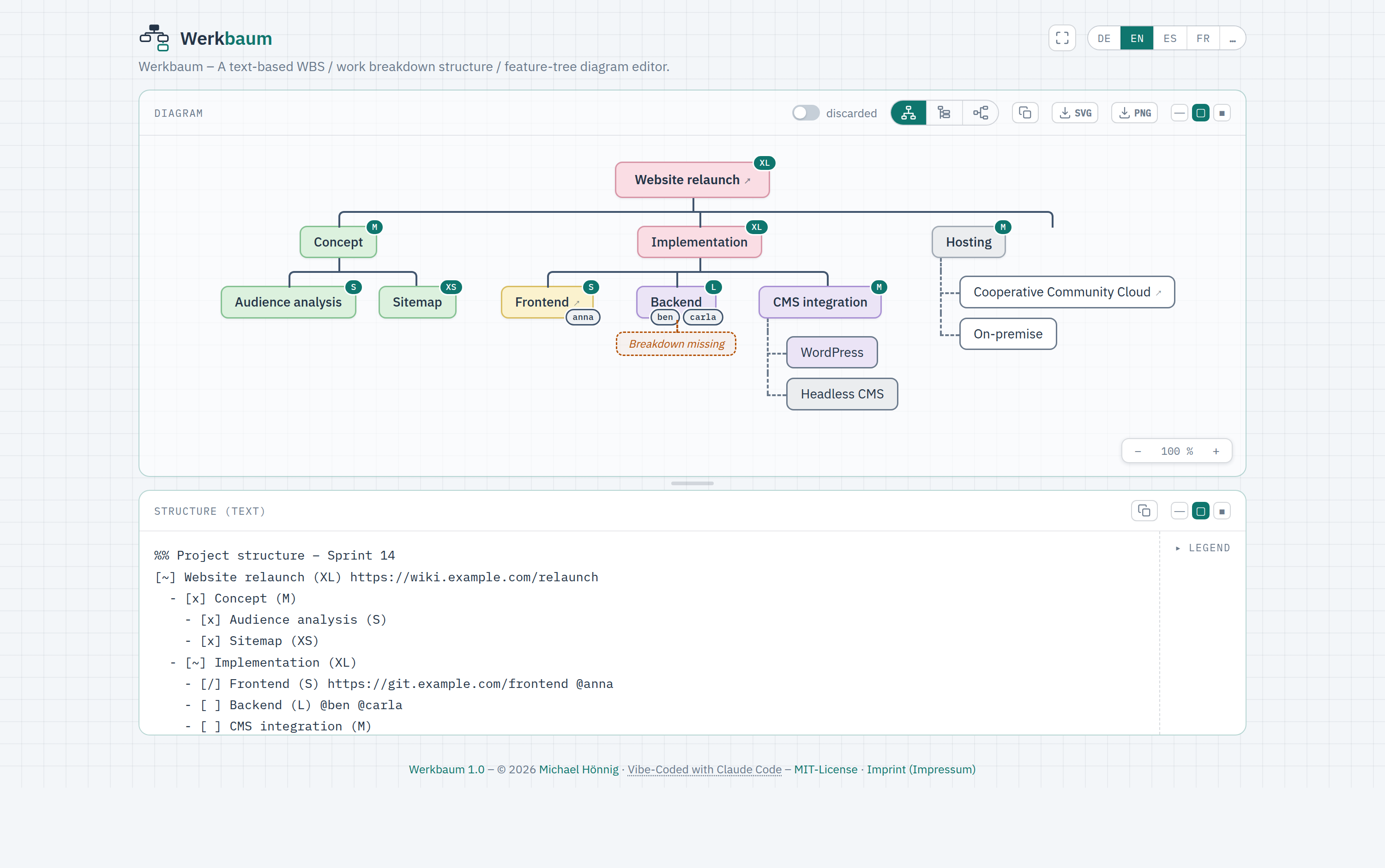

# Werkbaum **English** · [Deutsch](README.de.md) **▶ Try it live: ** (stable) · (latest build 🚧) A textual, Markdown-like notation for work breakdown structures with and/or decomposition — plus a live editor that renders it as a diagram. ``` [~] Werkbaum (XL) https://wiki.example.de/relaunch - [~] Document store | [x] Text file with copy+paste in the frontend (S) - [x] Parser - [x] Text input field in the frontend | [ ] Backend - [~] Display/rendering (XL) - [/] H (S) @anna - [ ] CMS integration (M) | [ ] WordPress | [?] Headless CMS ``` `-` = mandatory sub-package (all of, side by side in the diagram) · `|` = alternative (any of, stacked) · `[…]` = status · `(M)` = T-shirt effort · `@name` = responsibility · `%%` = comment. ## Usage  Open the [hosted editor](https://werkbaum.javagil.de) — edit text on the left, the diagram is built live on the right. Toggles: transposed (narrow) layout, show discarded elements. ### Jumping between diagram and text Diagram and editor are linked in both directions: - **Alt+click a node** (keyboard: **Alt+Enter**, touch: **long press**) selects its line in the text editor — collapsed editor panel opens first. - **Moving the cursor in the text** highlights the matching node in the diagram. A plain click keeps its old meaning: a node carrying a URL still opens it. ### Loading a diagram from a URL The editor can pull its notation text from an external text file via the `sourceUrl` query parameter — handy for sharing a plan or keeping the source in Git or a wiki: ``` https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-plan-0.werkbaum ``` Ready-made examples in [`docs/examples/`](docs/examples/) — **open them one after another**, each becomes its own document, so afterwards you can switch between all of them in the editor title bar: | Example | Shows | |---|---| | **▶ [0 · Online shop relaunch](https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-plan-0.werkbaum)** | a software project with all eight states | | **▶ [1 · New kitchen](https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-plan-1.werkbaum)** | a non-software plan, lots of alternatives — good for the cheapest-path toggle | | **▶ [2 · Community conference](https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-plan-2.werkbaum)** | a wide plan with many people; compare horizontal vs. compact | | **▶ [3 · Three workstreams](https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-plan-3.werkbaum)** | several roots = several trees side by side | | **▶ [Werkbaum itself](https://mhoennig.github.io/werkbaum/?sourceUrl=https://raw.githubusercontent.com/mhoennig/werkbaum/main/docs/examples/example-werkbaum.werkbaum)** | what exists today and where it could go | (The links point at the latest build 🚧; the stable instance supports `sourceUrl` from its next production deploy on.) The loaded text becomes its own document whose **name is the URL**, so your own documents stay untouched; the same link updates that one document instead of piling up copies. The URL is the source of truth — it is re-fetched on every load, so local edits to it do not survive a reload. Notation files use the extension **`.werkbaum`** (UTF-8; see `docs/SPEC.md` §12 and D24) — a convention, not a contract: `sourceUrl` reads any text file over http(s) regardless of extension or content type. **Caveat — CORS:** the browser only fetches a foreign host if it sends `Access-Control-Allow-Origin`. `raw.githubusercontent.com` and GitLab raw links do; an arbitrary web server often does not. If loading fails the previous content stays and a warning explains why. Only `http`/`https` are allowed. ### Working on one plan together (Etherpad) For real-time collaboration Werkbaum needs no backend of its own — it borrows an **Etherpad**. Pass the pad address as it appears in your browser (no export path, Werkbaum appends that itself): ``` https://werkbaum.javagil.de/?etherpad=https://pad.hostsharing.net/p/my-plan ``` Everyone edits the notation text **in the pad**; a reload button next to the pad button fetches the current state. Merging simultaneous edits is Etherpad's job — that is the whole point. Deliberately **no background polling**: Etherpad rate-limits the export (10 fetches per 90 s per IP by default), so a timer does not win against it — it *causes* the throttling. Measured: after exceeding the budget the server holds the connection open with no reply for about two minutes, then answers in 0.4 s. The button pairs well with "what's new": press it, and whatever went into production since your last look lights up. Because the pad is the writing surface, the text area here is **read-only**; a button in the editor title bar opens the pad in a new tab. Without that protection, anything you typed would vanish on the next fetch. Verified against Etherpad: the plain-text export sends `Access-Control-Allow-Origin: *`, and the notation comes back **byte-identical** — leading spaces, `-`/`+`/`|`, status boxes and `%%` survive Etherpad's storage model, and `-` is not turned into a bullet list. **Be aware:** your plan text then lives on third-party infrastructure, and a pad is readable by anyone who knows its address. See `docs/DECISIONS.md` D31. ### Running it locally The editor source now lives as ES modules under `frontend/src/`, bundled by [Vite](https://vitejs.dev/) (see `docs/DECISIONS.md` D19). Because browsers block ES-module imports over `file://`, opening `frontend/index.html` directly no longer works — use one of: ```bash cd frontend npm install # once npm run dev # dev server at http://localhost:8137 npm test # Vitest unit tests npm run build # -> frontend/dist/index.html (single self-contained file) ``` The built `dist/index.html` inlines all JS, CSS and the favicon, so **that** file does open standalone via `file://` and is what gets deployed. ### Build hint & your own production install Non-production builds carry a small hint next to the title (symbol + tooltip) so it's clear this is **not** the stable instance: - **Dev server** (`npm run dev`) → 🔧 "Preview – local development build" - **Default build** (`npm run build`, incl. the GitHub Pages deploy) → 🚧 "Latest build – may still be buggy" For **your own production install** the hint is switched off: ```bash cd frontend npm ci # or: npm install npm run build:prod # -> frontend/dist/index.html WITHOUT the hint ``` `build:prod` runs Vite in mode `prod`; `frontend/.env.prod` sets `VITE_BUILD_BADGE=none`, so the badge code is tree-shaken away entirely (it isn't even present in the output source). Drop the resulting `dist/index.html` onto your web space/server (standalone, `file://`-capable). Details: `app.js` (`mountBuildBadge`), `docs/DECISIONS.md` D16. Two things otherwise handled only by the Pages workflow, to fix up yourself when self-hosting: the footer **MIT-License** link is relative to `../LICENSE` (place that file one level above `index.html`, or adjust the link), and the **version number** stays the source placeholder `1.0` (the workflow otherwise replaces it from `VERSION` + commit count). **Easier: `scripts/deploy-prod.sh`.** The script runs exactly that prod build **and** both fix-ups (drop `LICENSE` alongside + straighten the link, footer version + commit link just like the Pages workflow) and mirrors the result to a server via rsync/SSH: ```bash scripts/deploy-prod.sh mih00@mih00.hostsharing.net:~/doms/werkbaum.javagil.de/htdocs-ssl ``` The target is either this argument or — with no argument — the `DEPLOY_TARGET` variable from the **git-ignored** file `.env` (template: `.env.example`, copy it once and fill in the path). An argument takes precedence. Without `-y` it first shows a `--dry-run` preview and asks for confirmation. `rsync --delete` ensures **nothing old** is left at the target — so the target directory is treated as exclusive to Werkbaum (an in-flight Let's Encrypt challenge under `.well-known/` is spared via `--filter=protect`, and web-friendly 755/644 permissions are enforced). (Hostsharing: a **directly-served** domain is served from `…/htdocs-ssl/`; as a **subdomain** under another domain the web directory would be `…/subs-ssl//`.) ## Project documents - `frontend/` — editor · `backend/` — Kotlin/Spring (scaffold to follow, see backend/README.md) - `docs/SPEC.md` — normative language definition - `docs/DECISIONS.md` — design decisions with rationale - `docs/ROADMAP.md` — Mermaid plugin, Taiga integration, Tenzu - `docs/TASKS.md` — open tasks (checkboxes) - `docs/brand/BRAND.md` — logo, wordmark, usage rules - `docs/design/` — design derivation of the brand - `CLAUDE.md` — project context for Claude Code > **Note:** The detailed project documentation under `docs/` is maintained in > German, the project's source language (see `CLAUDE.md`). This README is > available in [English](README.md) and [German](README.de.md). ## Deployment The editor is published as a static page on **GitHub Pages** via GitHub Actions (workflow: `.github/workflows/pages.yml`). Triggered on every push to `main` and manually (`workflow_dispatch`). The workflow sets up Node, runs `npm ci`, `npm test` (Vitest) and `npm run build` (Vite), then publishes the bundled `frontend/dist/index.html` as `index.html` at the root URL, plus `LICENSE` for the MIT link in the footer. The favicon is already inlined into the build, so nothing else needs copying; only the runtime `../LICENSE` link is straightened on the copy. A failing test blocks the deploy. `backend/` and the remaining `docs/` are not published. While assembling the site, the workflow also stamps the version into the footer: **major.minor** comes from the `VERSION` file (bumped by an explicit "bump commit"), and the **micro** part is the number of commits since that last bump — so it grows with every commit and resets to `0` right after a bump (`Werkbaum 1.0.0`, `1.0.1`, … then bump `VERSION` to `1.1` → `1.1.0`). Nothing is written back to the repo. In the footer the name **Werkbaum** links to the repository, while the **version number** links to that exact commit (`…/commit/`). Opened locally, the editor shows the source placeholder (`Werkbaum 1.0`). **One-time setup:** In the repo settings under **Pages**, select **Source** = "GitHub Actions". The repo must be **public** for this (GitHub Pages via Actions is only available for private repos on a paid plan). ### Stable instance `scripts/deploy-prod.sh` mirrors a badge-free production build to a server over SSH (target in `.env`, template `.env.example`). Unlike Pages this is a **deliberate** step, so it is also the moment a feature actually goes live. The script therefore starts by running `scripts/promote-shipped.sh`, which turns `[x]` (done) into `[^]` (in production) in `docs/examples/example-werkbaum.werkbaum` — the shipped plan describing Werkbaum itself — and records that as its own commit. The convention is: mark a finished feature `[x]` when it is merged and let the deploy promote it. That keeps the plan honest on both instances and keeps the "what's new" highlighting meaningful. Skip it with `--no-promote`; see [docs/DECISIONS.md](docs/DECISIONS.md) D30. The commit is **not** pushed automatically — run `git push` afterwards, or the footer version link points at a commit GitHub does not know yet. ## License MIT — see [LICENSE](LICENSE). © 2026 Michael Hönnig. The bundled IBM Plex fonts are under the SIL Open Font License 1.1 (see [LICENSE](LICENSE) and `frontend/src/fonts/OFL.txt`).
